Installing sealing ring for the panoramic glass roof frame inside

NOTE: TECHNICAL INFORMATION
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For additional information see: NOTES ON COMPONENT BONDING WITH ADHESIVE TAPE .

Clean the adhesive area (3) .
CONSUMABLE SPECIFICATION

Cleaning agent R1 100 ml, Bottle 83192211217

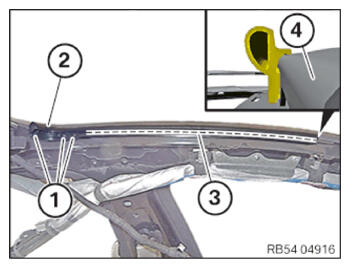

Position seal for the panoramic glass roof frame (2) and fasten the blind rivets (1) .
Stick seal for the panoramic glass roof frame (2) in the area (3) flush with the panoramic glass roof frame (4) .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING MECHANICS .
Refer to INSTALLING THE ROLLING MODULE .
Refer to PARTIALLY INSTALLING THE HEAD AIRBAG .
Refer to CHECKING THE ROLLER SUNBLIND AND THE GLASS ROOF FOR FUNCTION .
Refer to INSTALLING THE HEADLINING (LOWERED WITH PANORAMIC GLASS SUNROOF) .
Refer to INSTALLING INTERIOR ROOF LIGHT .
Refer to INSTALLING THE GRAB HANDLE AT THE REAR LEFT AND RIGHT .
Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
Refer to INSTALLING THE LEFT AND RIGHT FRONT VANITY MIRROR LIGHT .
Refer to INSTALLING BOTH SUN VISORS AND COUNTER SUPPORTS .
Refer to INSTALLING THE LEFT AND RIGHT HANDS-FREE MICROPHONE .
Refer to INSTALLING THE C-PILLAR TRIM PANEL ON THE LEFT AND RIGHT .
Refer to INSTALLING THE LEFT AND RIGHT SEAT BELT FINISHER STRIP .
Refer to INSTALLING BOTH BACKREST SIDE SECTIONS .
Refer to PARTIALLY INSTALLING BOTH B-PILLAR TRIM PANELS AT TOP .
Refer to INSTALLING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
Refer to INSTALLING THE PANORAMA ROOF COVER .
Refer to CHECKING THE ADJUSTMENT OF THE PANORAMA GLASS ROOF .
Refer to ADJUSTING THE PANORAMA ROOF COVER .
Refer to INSTALLING SEALING RING FOR THE PANORAMIC ROOF INSIDE .
Refer to INITIALIZING PANORAMA GLASS ROOF .
