Partially installing both B-pillar trim panels at top

NOTE: Description is for left component only. Procedure on the right side is identical.

Partially installing top B-pillar trim panel

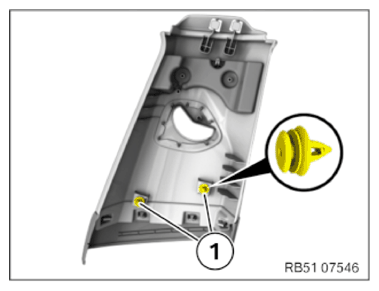

Check the clips (1) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

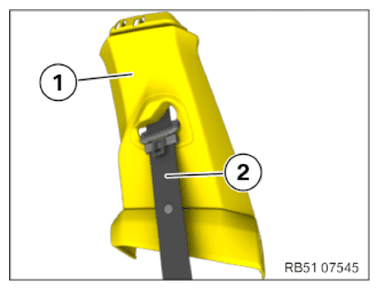

Feed upper seat belt (2) into top B-pillar trim panel (1).

Courtesy of BMW OF NORTH AMERICA, INC.

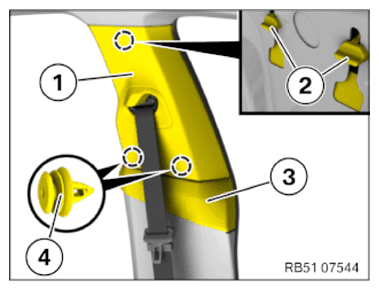

Feed top B-pillar trim panel (1) into guides (2).
Feed in top B-pillar trim panel (1) with center B-pillar trim panel (3) under lips of edge protection at front and rear.
Clip in top B-pillar trim panel (1) with clips (4).

Courtesy of BMW OF NORTH AMERICA, INC.
