Install interior roof light

Check

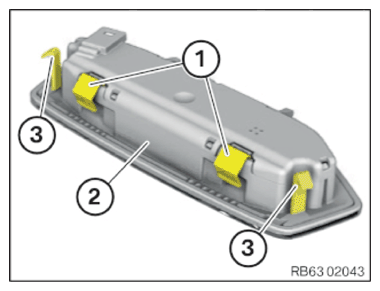

• Check clamps (1) and safety catches (3) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Clamps (1) are damaged.

Measure

• Replace the interior roof light (2).

Result

» Safety catches (3) are damaged.

Measure

• Replace the interior roof light (2).

• Connect connectors and lock.

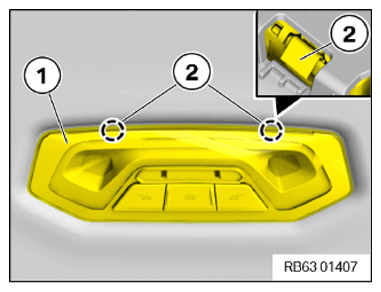

• Clip in the interior roof light (1) with clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.
