Install both backrest side sections

NOTE: Description is for left component only. Procedure on the right side is identical.

Install backrest side section

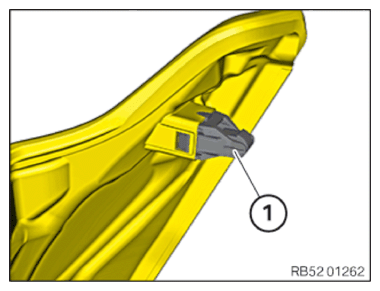

Check the detents (1) on the back rest side section for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

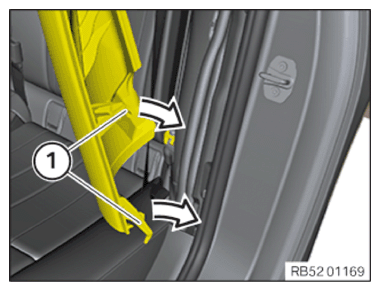

Feed in the guides (1) in arrow direction at the bottom.

Courtesy of BMW OF NORTH AMERICA, INC.

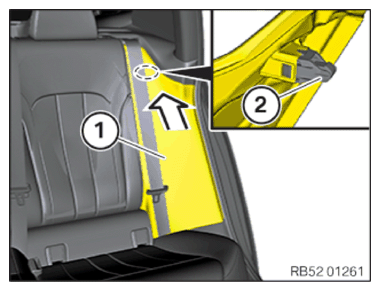

Clip in the top backrest side section (1) at the detent (2) in arrow direction.
Insert the top backrest side section (1) under the sealing lip of the door weather strip.

Courtesy of BMW OF NORTH AMERICA, INC.
