Install both sun visors and counter supports

Install the sun visor and the counter support

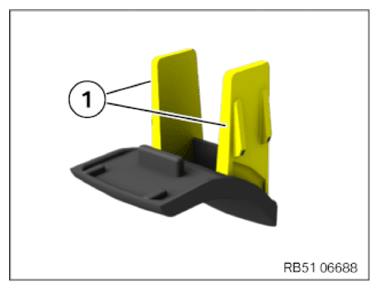

• Check the guides (1) on the cover of the counter support for damage and replace it if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

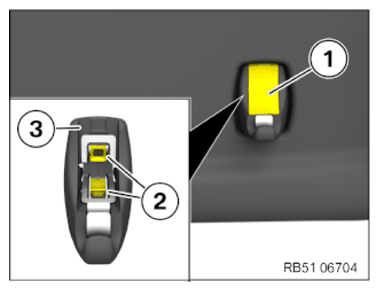

• Clip the counter support (3) into the headlining.
• Make sure the clamps (2) are engaged correctly.
• Clip in the cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect and lock the associated connectors and install the sun visor.

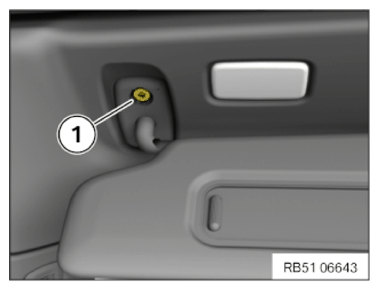

• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

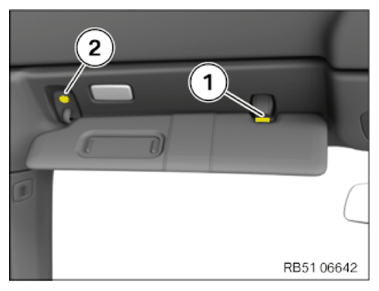

• Clip in the cover (2).
• Attach the sun visor on the counter support (1).

Courtesy of BMW OF NORTH AMERICA, INC.
