Installing Roof function center (FZD)

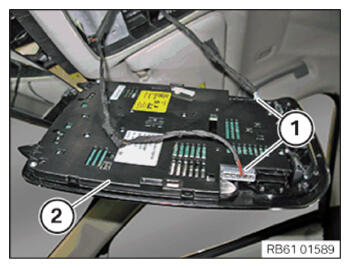

• Connect connectors (1) and lock.
• Clip the cable for the roof function center (FZD) (2) into the cable clip.

  Courtesy of BMW OF NORTH AMERICA, INC.

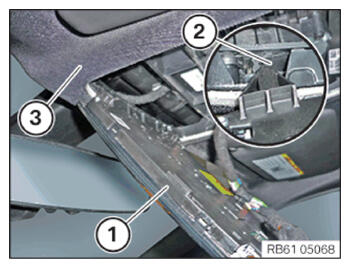

• Feed the roof function center (FZD) (1) as shown at a steep angle into the two guides (2) on the headlining (3).
• While doing this, make sure that the headlining is not deformed.

  Courtesy of BMW OF NORTH AMERICA, INC.

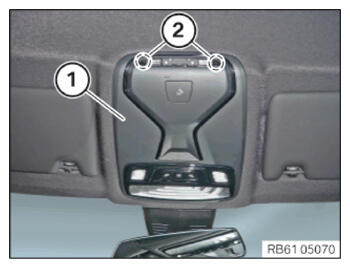

• Clip in the roof function center (FZD) (1) with the clamps (2) towards the top.

  Courtesy of BMW OF NORTH AMERICA, INC.

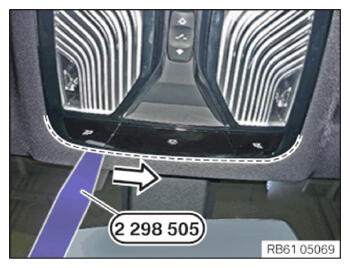

• Slide the special tool 2 298 505 between the FZD frame and the headlining along the dotted line in the arrow direction in order to adjust the headlining correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

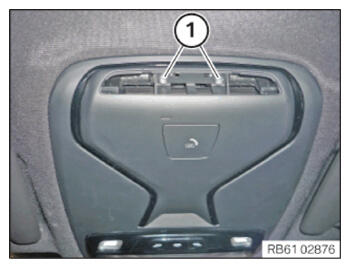

• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Roof function center (FZD)
  	Tightening torque	1.2 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

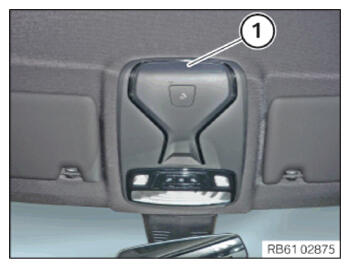

• Clip in the cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• INITIALIZING THE GLASS SLIDE/TILT SUNROOF .
