Adjusting the panorama roof cover

Preliminary work

• Refer to REMOVING SEAL FOR THE PANORAMIC ROOF INSIDE .

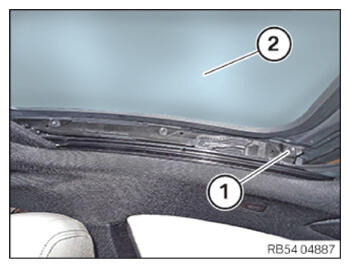

• Slacken the screws (1) on the left and right hand side of the vehicle until the panorama roof cover (2) can barely be moved.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Shift the panorama roof cover (2) until the ideal setting is reached.
• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Panorama glass roof lid to mechanics
  Screw	tightening torque	6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

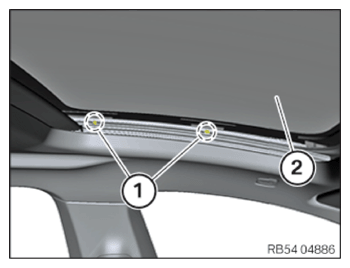

• Open the panorama roof cover (2) a few cm.
• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Panorama glass roof lid to mechanics
  Screw	tightening torque	6 Nm
