Remove oil sump

WARNING: Car may slip off the vehicle hoist where components are supported. Danger! Immobilization period-threatening injuries!

Secure the vehicle hoist against lowering and lifting.
Make sure that the vehicle does not lift off the mounting plates on the vehicle lift.

WARNING: vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly. Danger! Immobilization period-threatening injuries!

Observe safety instructions on raising the vehicle using a vehicle hoist.
For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .

WARNING: Car may slip off the vehicle hoist if the weight is distributed unevenly .
Danger! Immobilization period-threatening injuries!

Ensure there is a specific weight compensation on the car.

WARNING: Hot fluids .
Risk of scalding!

Conduct all work in the vehicle wearing appropriate personal protective equipment only.

WARNING: Hot surfaces .
Risk of burning!

Perform all work only on components that have cooled down.

Preliminary work

Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
Refer to REMOVING THE LATERAL HOOD SEALS .
Refer to REMOVING THE SIDE PANEL SEAL .
Refer to RELEASING THE WIRING HARNESS SECTION ON THE LEFT SHOCK TOWER .
Refer to RELEASING THE WIRING HARNESS SECTION AT THE RIGHT SHOCK TOWER .
Refer to REMOVING THE ACOUSTIC COVER .
Refer to REMOVING INTAKE SILENCER HOUSING .
Refer to REMOVING THE OIL FILLER CAP .
Refer to REMOVING THE FRONT LEFT AND RIGHT WHEELS .
Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
Refer to IF INSTALLED: REMOVE THE UNDERBODY PROTECTION OF THE STEERING SYSTEM .
Refer to REMOVING THE CENTER UNDERBODY PROTECTION .
Refer to REMOVING REAR UNDERBODY PROTECTION .
Refer to RELEASING THE OIL DRAIN PLUG .
Refer to TIGHTENING THE OIL DRAIN PLUG .
Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
Refer to REMOVING THE BOTTOM WHEEL ARCH COVER ON THE LEFT AND RIGHT .
Refer to REMOVING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
Refer to REMOVING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER FRONT .
Refer to MOVE THE ENGINE TO THE INSTALLATION POSITION .
Refer to DETACHING STEERING SHAFT AT BOTTOM FROM STEERING GEAR .
Refer to DETACHING THE WIRING HARNESS OF THE EPS FROM THE FRONT AXLE SUPPORT .
Unlock plug connection (1) and disconnect.
Unclip the line from holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Refer to DISCONNECTING THE LEFT AND RIGHT ANTI-ROLL BAR LINK FROM THE ANTI-ROLL BAR .
Refer to LOOSENING THE TIE ROD ON THE LEFT AND RIGHT FROM THE SWIVEL BEARING .
Refer to RELEASING THE WISHBONE ON THE LEFT AND RIGHT FROM THE SWIVEL BEARING .
Refer to RELEASING THE TENSION STRUTS FROM THE SWIVEL BEARING ON THE LEFT AND RIGHT .
Refer to PARTIALLY REMOVING THE LEFT AND RIGHT BRAKE VENTILATION DUCT .
Refer to PREPARING THE SPECIAL TOOL .
Refer to REMOVING THE FRONT SUBFRAME .
Refer to REMOVING THE ACOUSTIC COVER OF THE OIL SUMP .
Refer to REMOVING STARTER MOTOR .

NOTE: RISK OF DAMAGE
Contaminant or foreign body .
Contamination can result in malfunctions, loss of function or leaks .

Adhere to the utmost cleanliness.
Protect components from contamination e.g. by covering.
Close off line connections with seal plugs.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

Unlock plug connection (1) and disconnect.
Unclip cable In the marked area.
Loosen screws (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

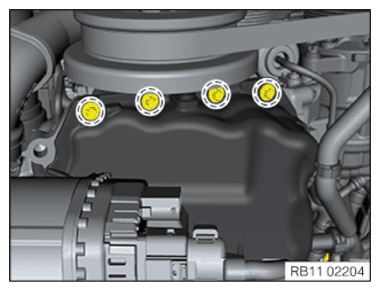

Remove all screws (marks).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove all screws (marks).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove all screws (marks).

Courtesy of BMW OF NORTH AMERICA, INC.

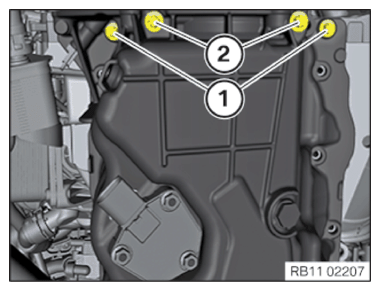

Loosen screws (1) and (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
TECHNICAL INFORMATION
Increased force may be necessary during disassembly because the component is bonded with liquid sealing compound.

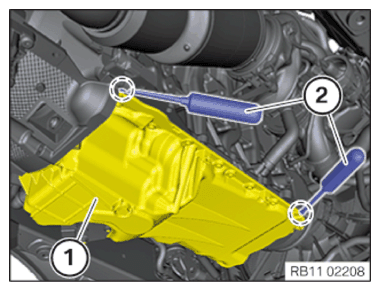

- Loosen oil sump (1) in the marked areas with the screwdrivers (2) .
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Increased force may be necessary during disassembly because the component is bonded with liquid sealing compound.
Loosen oil sump (1) in the marked area with screwdriver (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Remove oil sump (1) from the bottom rear.

Courtesy of BMW OF NORTH AMERICA, INC.
