Releasing the oil drain plug
WARNING:
Hot fluids
.
Risk of scalding!
Risk of scalding!
- Conduct all work in the vehicle wearing appropriate personal protective equipment only.
NOTE:
TECHNICAL INFORMATION
Catch and dispose of drained motor oil in a suitable collecting vessel. Observe country-specific waste disposal regulations.
Catch and dispose of drained motor oil in a suitable collecting vessel. Observe country-specific waste disposal regulations.

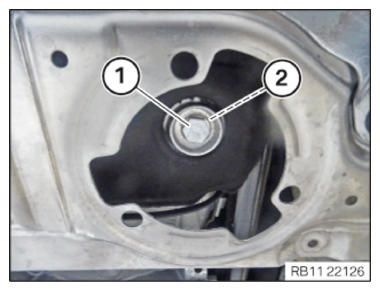

- Release oil drain plug (1) .
- Feed out and remove the oil drain plug (1) with the sealing ring (2) .
- Allow the motor oil to drain out fully.
WARNING:
Hot fluids
.
Risk of scalding!
Risk of scalding!
- Conduct all work in the vehicle wearing appropriate personal protective equipment only.
- Turn and remove service cap (1)
.
- Open oil drain plug (1)
from the oil sump.NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations. - Allow the motor oil to drain out fully.
