Removing the bottom wheel arch cover on the left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.

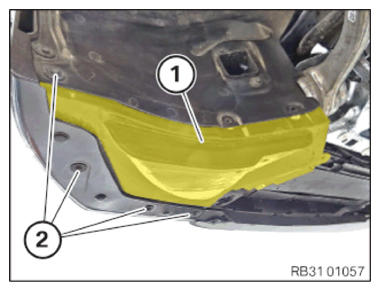

Removing the lower wheel arch cover
- Loosen screws (2).
- Remove the lower wheel arch cover (1).
