Detaching the wiring harness of the EPS from the front axle support

NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.

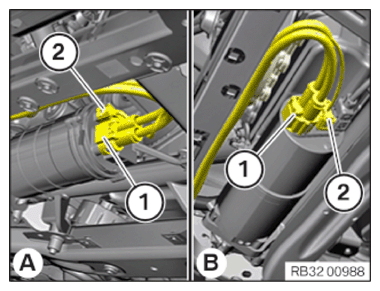

Version A:
Unlock and disconnect the plug connections (1) and (2).
Version B:
Unlock and disconnect the plug connections (1) and (2).
Loosen the holder (2).
Set wiring harness (1) aside.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.

Version A:
Unlock and disconnect the plug connections (1) and (2).
Version B:
Unlock and disconnect the plug connections (1) and (2).
Loosen the holder (2).
Set wiring harness (1) aside.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.
