Loosening the tie rod on the left and right from the swivel bearing
NOTE:
Description is for left component only. Procedure on the right side is identical.
Loosening the tie rod from the swivel bearing

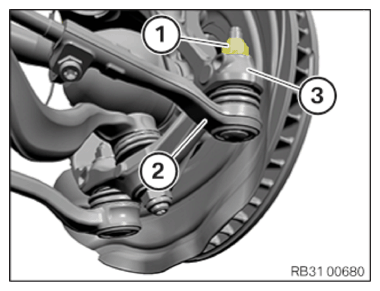

- Release nut (1). If necessary, counter support at the Torx socket.
- Loosen the tie rod (2) from the swivel bearing (3).
