Disconnecting the left and right anti-roll bar link from the anti-roll bar
NOTE:
Perform the steps on the left and right side.

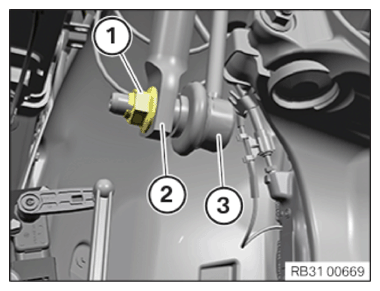

Loosening the anti-roll bar link from the anti-roll bar
- Release nut (1). If necessary, counter support at the Torx socket.
- Loosen the anti-roll bar link (3) from the anti-roll bar (2).
Courtesy of BMW OF NORTH AMERICA, INC.
|
