Installing coolant pumps
- Make sure the fitting sleeve (1) is in the crankcase.
NOTE:
TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.
The sealing surfaces must be free of oil, grease and cleaning agents.

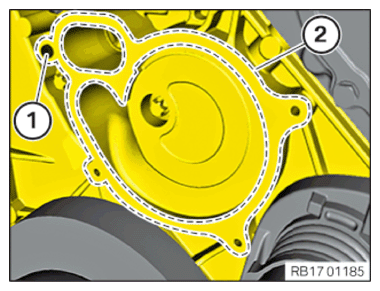

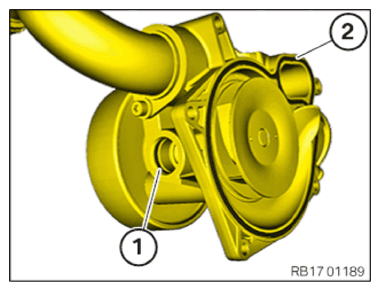

- Clean sealing surface (2).

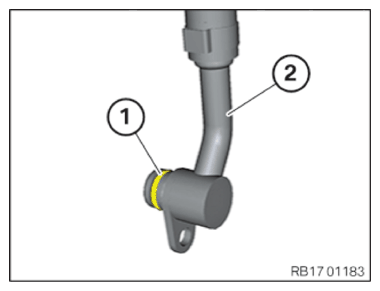

- Check the O-ring (1) of the coolant line (2) for damage, replace the line if applicable.
- Replace O-ring (1).
Parts: O-ring
- Replace the seal (2).
Parts: Seal
- Position the coolant pump (3) with the feed line.
- Position the coolant line (2).
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Coolant line on coolant pump | ||
|---|---|---|
| M6x12 screw | tightening torque | 8 Nm |
Install the feed line to the external radiator
- Position the feed line (2).
- Connect the feed line (2).

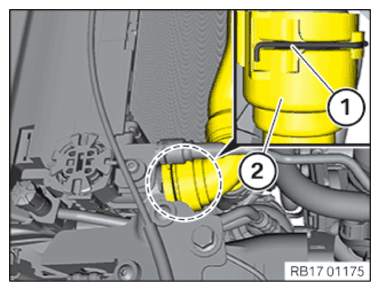

The retaining clip (1) must engage audibly.
Install feed line
- Position the feed line.
- Connect the feed line (2).
- Retaining clip (1) must engage audibly.
- Position coolant pump (1).
- Tighten the screws in the area indicated by the arrows.
NOTE:
Observe the screw length.
TIGHTENING TORQUES SPECIFICATION
| Coolant pump | ||
|---|---|---|
| M6 screw | Tightening torque | 10 Nm |
- Position the coolant line.
- Connect the coolant line (2).
- Retaining clip (1) must engage audibly.
Tighten the heater return
- Position the heater return (2) in the coolant pump.
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Heater return | ||
|---|---|---|
| M6x18 | Tightening torque | 8 Nm |
- Connect plug connection (1) and lock.

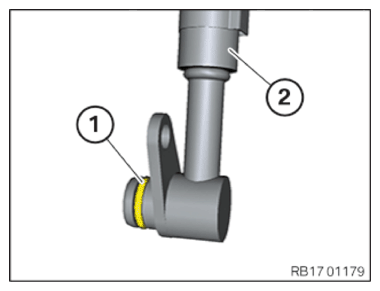

- Check the O-ring (1) of the coolant line (2) for damage, replace the line if applicable.
- Position the coolant line (2).
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Coolant line on coolant pump | ||
|---|---|---|
| M6x12 screw | tightening torque | 8 Nm |
