Tighten the front-end strut on the right
NOTE:
RISK OF DAMAGE
Use of an incorrect tool (impact screwdriver) to release and tighten the screws.
Damaged thread.
Use of an incorrect tool (impact screwdriver) to release and tighten the screws.
Damaged thread.
- Only use a standard tool (e.g. reversible ratchet) to release/tighten the screws.
- Clean the thread at shock tower.

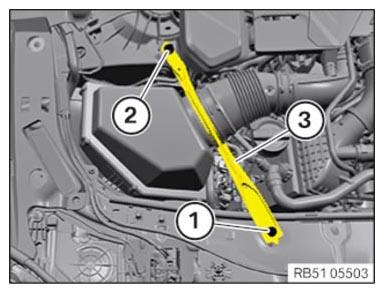

- Replace the screw (1).
Parts: Screw
Tighten the bolt (1) of the strut brace (3).
TIGHTENING TORQUE SPECIFICATION
| Front-end strut, front | ||
|---|---|---|
| Screw | Snug torque | 28 Nm |
| Angle of rotation | 90° | |
- Replace the screw (2).
Parts: Screw
Tighten the bolt (2) of the strut brace (3).
TIGHTENING TORQUE SPECIFICATION
| Front-end strut, rear | ||
|---|---|---|
| Screw | Snug torque | 56 Nm |
| Angle of rotation | 90° | |
- Repair the damaged thread on the shock tower with a Helicoil insert.
CONSUMABLE DESCRIPTION
| Helicoil thread insert | M10x30 mm 07129909659 |
