Installing the left-hand charge air cooler
- Replace hose (1)
.
Parts: Hose
- Position hose (1) with hose clamps (2) as shown.
- Replace hose (5)
.
Parts: Hose

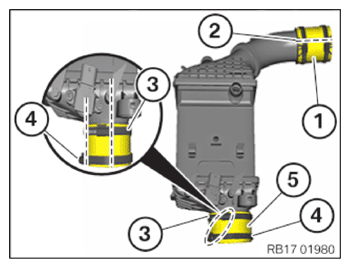

- Position the hose (5) and the hose clamp (3) (diameter 60-80 mm) at the top.
- Ensure that the hose clamp at the top (3) in the area of threaded connection is aligned with the screw on boost pressure sensor.
- Position hose clamp (4)
on hose (5)
(diameter of 77-84 mm) at the bottom.
- Ensure that the hose clamp at the bottom (4) in the area of the threaded connection is aligned with the rubber mount on the charge air cooler.
- Guide in and position charge air cooler (2) at the bottom.

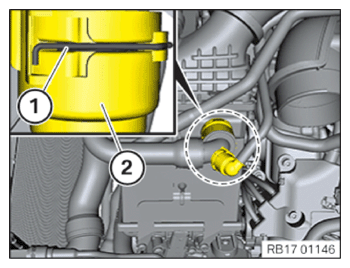

- Tighten hose clamp (1)
.TIGHTENING TORQUES SPECIFICATION
hose hose Tightening torque 3.5 Nm - Position the connecting plate (2) between the charge air coolers.
- Tighten down screws (1)
.TIGHTENING TORQUES SPECIFICATION
Connecting plate of charge air cooler Screw Tightening torque 6.5 Nm - Connect hose (2)
.
The retaining clip (1) must snap-in audibly.

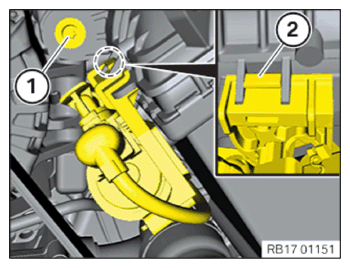

- Engage the holder (2) on the charge air cooler.
- Tighten down screw (1)
.TIGHTENING TORQUES SPECIFICATION
Charge air cooler top M6x30 screw Tightening torque 10 Nm - Connect the line (1)
and lock.
- Position the holder (3) in the groove (4) .
- Tighten down screw (2)
.TIGHTENING TORQUES SPECIFICATION
Charge air cooler bottom M6x18 screw Tightening torque 10 Nm - Secure the wiring harness mounting (1)
.

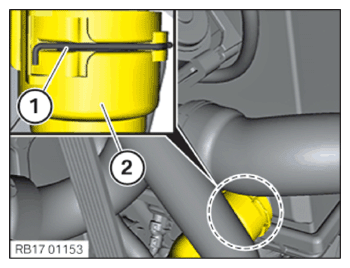

- Tighten hose clamp (1)
.TIGHTENING TORQUES SPECIFICATION
hose hose Tightening torque 3.5 Nm - Tighten hose clamp (2)
.TIGHTENING TORQUES SPECIFICATION
hose hose Tightening torque 3.5 Nm - Slide the hose (2) onto the studs of the charge air cooler.
- Replace the hose clamps (3)
and the hose.
Parts: Hose clamps and hose
- Fasten the hose clamps (3) .
- Thread in the hose (1)
in the holder on the charge air cooler (4)
.
- Slide the hose (2) onto the studs of the charge air cooler.
- Replace the hose clamps and the hose.
Parts: Hose clamps and hose
- Fasten the hose clamps (3) .
- Feed the hose (1)
into the holder on the charge air cooler (4)
.
- Attach the coolant lines (2)
.
The retaining clips (1) must snap-in audibly.
- Position the cable in the cable bracket (2) .
- Lock the cable bracket (2) .
- Connect connectors (1) and lock.
Follow-up work
- Refer to CLOSING THE COOLANT PUMPS .
- Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
- Refer to INSTALLING FAN COWL WITH ELECTRIC MOTOR .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING UPPER CROSS CONNECTION .
- Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
- Refer to TIGHTENING THE FRONT-END STRUT ON THE RIGHT .
- Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
- Refer to TIGHTENING THE LEFT FRONT-END STRUT .
- Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE FRONT HOOD SEAL .
- Refer to INSTALLING THE COVER PANEL OF THE MASTER DME CONTROL UNIT .
- Refer to INSTALLING THE COVER PANEL OF THE SLAVE DME CONTROL UNIT .
