Installing the center engine compartment cover

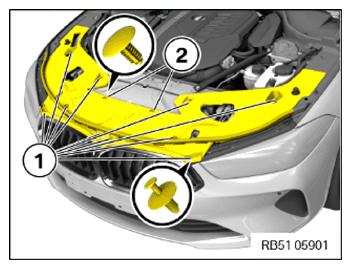

Position the cover in the center engine compartment.
Clip in clips (2) .
Secure expanding rivet (1) .

G15651485

Courtesy of BMW OF NORTH AMERICA, INC.
