Installing underbody protection at side right and left

NOTE: Perform the steps on the right and left side.

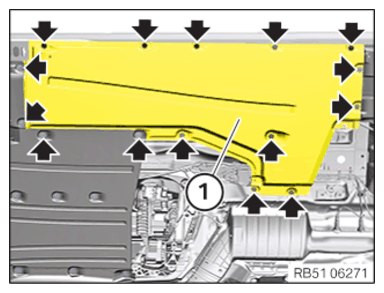

• Insert the undershield (1).
• Tighten all bolts and nuts (arrows).

TIGHTENING TORQUE SPECIFICATION

Undershield, side
Hexagon screw	Tightening torque	2.6 Nm
Plastic nut	Tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
