Install the stiffening plate

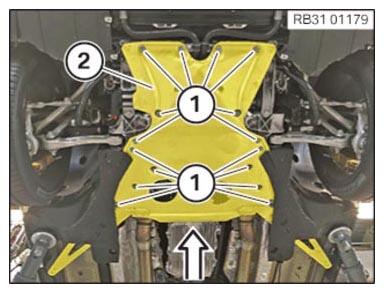

- Feed in the stiffening panel (2) in the arrow direction and position it.
- Replace screws (1)
.
Parts: Screws
- Tighten the screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Thrust field to front axle support | ||
|---|---|---|
| M8 Replace screws. |
Snug torque | 28 Nm |
| Angle of rotation | 90° | |

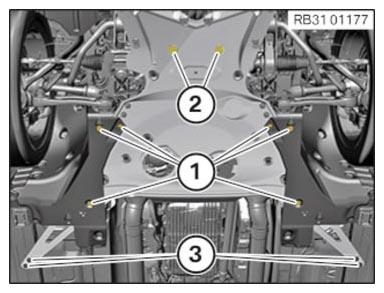

- Replace screws (3)
.
Parts: Screws
- Tighten the screws (3) .
TIGHTENING TORQUES SPECIFICATION
| Thrust field on side member | ||
|---|---|---|
| M10 Replace screws. |
Snug torque | 56 Nm |
| Angle of rotation | 90° | |
- Tighten the screws (2) .
TIGHTENING TORQUES SPECIFICATION
| EPS cable bracket on thrust field | ||
|---|---|---|
| Hexagon bolt for thermoplastic | Tightening torque | 3 Nm |
- Tighten the screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Front wheel arch cover on thrust field | ||
|---|---|---|
| Hexagon bolt for thermoplastic | Tightening torque | 3 Nm |
Follow-up work
- Refer to REMOVING UNDERBODY PROTECTION AT SIDE RIGHT AND LEFT .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
