Replacing the rear power electric windows
Precondition
- Convertible top is open.
Convertible top flap is in open position.
Wind deflector is removed.
Rear seat backrest is folded.
Preliminary work
- Refer to REMOVING THE INNER DOOR SILL COVER STRIP .
- Refer to REMOVING REAR SEAT BENCH .
- Refer to REMOVING THE REAR OUTER WINDOW RECESS FINISHER STRIP .
- Refer to REMOVING THE SEAT BELT FINISHER STRIP .
- Refer to REMOVING REAR SIDE TRIM PANEL .
- Refer to REMOVING REAR INNER WINDOW CHANNEL STRIP .
- Refer to REMOVING REAR POWER WINDOW REGULATOR .
Remove flat motor for rear power windows
- Release the screws (1) and feed out the flat motor for the power electric windows (3).
Install the flat motor for the rear power windows

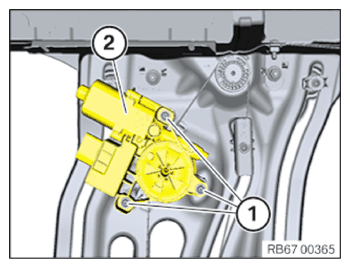

- Correctly insert the flat motor for the power electric windows (2) and tighten the screws (1).
TIGHTENING TORQUE SPECIFICATION
| Flat motor to power electric windows | ||
|---|---|---|
| Screw | tightening torque | 3.5 Nm |
Remove rear side window glass
- Release multi-tooth screws (1) and remove side window (2) from power window.

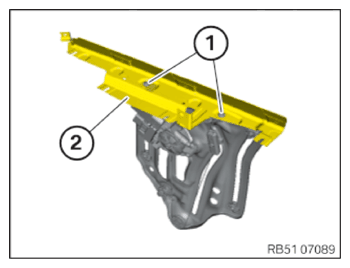

- Release screws (1) and remove angle bracket (2).
- Replace the power electric window.
Parts: Power electric windows
- Position the angle bracket (2) and tighten the screws (1).
TIGHTENING TORQUE SPECIFICATION
| Rear power window (angle bracket above) | ||
|---|---|---|
| Oval-head screw | tightening torque | 7.6 Nm |
Install rear side window glass
- Position side window (2) correctly on power window and tighten multi-tooth screws (1) so far that side window (2) can still be moved.
Follow-up work
- Refer to INSTALLING REAR POWER ELECTRIC WINDOWS .
- Refer to ADJUSTING THE REAR SIDE WINDOW .
- Refer to ATTACHING THE REAR INNER WINDOW CHANNEL STRIP .
- Refer to INSTALLING REAR TRIM PANEL .
- Refer to INSTALLING THE SEAT BELT FINISHER STRIP .
- Refer to ATTACHING THE REAR OUTER WINDOW RECESS FINISHER STRIP .
- Refer to INSTALLING THE REAR SEAT .
- Refer to INSTALLING THE INNER DOOR SILL COVER STRIP .
