Attaching the rear outer window recess finisher strip

Precondition

The door window glass is open.

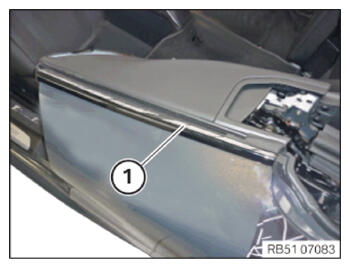

• Check the window channel strip (1)  for damage, replace if necessary.
• Coat the window channel strip (1)  with a suitable lubricant prior to installation.

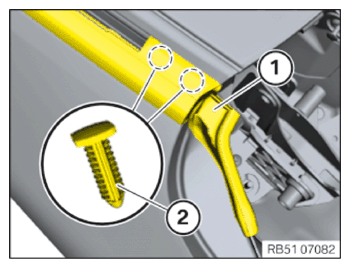

• Attach the window recess finisher strip (1)  and clip into the clips (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Press down the window channel strip (1)  across its entire length.

Courtesy of BMW OF NORTH AMERICA, INC.
