Install rear power electric windows
- Install the power electric windows and connect the connector (1)
and lock.
- Feed power windows (2)
into the side section.
Correctly feed the lower screw into the bracket.
- Apply the screws (1) until the power electric windows can still be shifted.
Adjusting the rear window shaft dimension
- Adjust the window cavity dimension (A)
and (B)
by shifting the power electric windows.

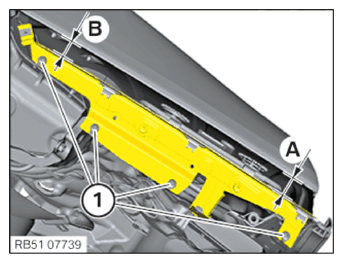

Measure the window cavity dimension (A) and (B) between the angle bracket and the inner edge of the side section.
| Dimension A (front) | Dimension B (rear) |
|---|---|
| 31.5 mm | 30.0 mm |
- Tighten screws (1) on the rear power electric windows.
TIGHTENING TORQUE SPECIFICATION
| Rear power window (angle bracket above) | ||
|---|---|---|
| Oval-head screw | tightening torque | 7.6 Nm |
- Tighten down screw (2) .
TIGHTENING TORQUE SPECIFICATION
| Rear power window (screw below) | ||
|---|---|---|
| Hexagon screw | tightening torque | 10 Nm |
- Mount the cover (1) .
Follow-up work
- Refer to ADJUSTING THE REAR SIDE WINDOW .
- Refer to ATTACHING THE REAR INNER WINDOW CHANNEL STRIP .
- Refer to INSTALLING REAR TRIM PANEL .
- Refer to INSTALLING THE SEAT BELT FINISHER STRIP .
- Refer to ATTACHING THE REAR OUTER WINDOW RECESS FINISHER STRIP .
- Refer to INSTALLING THE REAR SEAT .
- Refer to INSTALLING THE INNER DOOR SILL COVER STRIP .
