Removing rear power window regulator

Precondition

• Convertible top is open.

  Convertible top flap is in open position.

  Wind deflector is removed.

  Rear seat backrest is folded.

Preliminary work

• Refer to REMOVING THE INNER DOOR SILL COVER STRIP .
• Refer to REMOVING REAR SEAT BENCH .
• Refer to REMOVING THE REAR OUTER WINDOW RECESS FINISHER STRIP .
• Refer to REMOVING THE SEAT BELT FINISHER STRIP .
• Refer to REMOVING REAR SIDE TRIM PANEL .
• Refer to REMOVING REAR INNER WINDOW CHANNEL STRIP .

• Remove the cover (1) and slacken the screw (2) below it but do not remove.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screws (1).
• Feed out the power electric windows (2) from the side section.

  Courtesy of BMW OF NORTH AMERICA, INC.

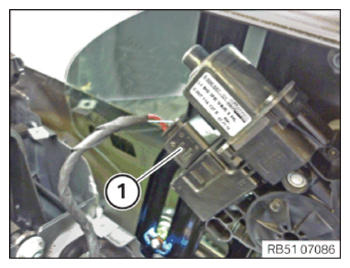

• Unlock and disconnect the plug connection (1) and remove the power electric windows.

Courtesy of BMW OF NORTH AMERICA, INC.
