Install rear trim panel

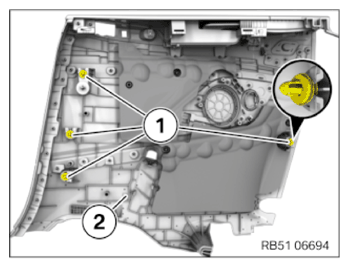

- Check the clips (1) on the side trim panel (2) for damage and replace, if necessary.
Partially installing the Bowden cable for the convertible top compartment lid
- Check the detents on the trim (1) for damage and replace if applicable.
- Clip Bowden cable (2)
into trim (1)
in the arrow direction.IMPORTANT: The Bowden cable (2) must snap in audibly by pulling in the arrow direction.
- Clip Bowden cable (1) into lock (2) .
- Connect and lock all the connectors of the wiring harness (2)
on the rear side trim panel (1)
.
- Guide the safety belt into the rear side trim panel (1) .
- Correctly position the rear side trim panel (1) and clip into the clamps (3) .
- Clip in the rear side trim panel (1) with the clips (2) .
- Feed the rear side trim panel (1) into the door weather strip.
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
- Position the safety belt and tighten the screw (2) .
TIGHTENING TORQUE SPECIFICATION
| End lining to body | ||
|---|---|---|
| screw | Tightening torque | 42 Nm |
- Install the protective cap (1) .
- Replace the screw (1)
.
Part: Screw
Tighten down screw (1) .
TIGHTENING TORQUE SPECIFICATION
| Linkage aperture flap to connecting bracket | ||
|---|---|---|
| Sheet metal screw 4.8x19 Replace screw. |
Tightening torque | 2.6 Nm |
- Tighten nut (2) .
TIGHTENING TORQUE SPECIFICATION
| Side trim panel to body | ||
|---|---|---|
| Hexagon nut | tightening torque | 3 Nm |
Follow-up work
- Refer to INSTALLING THE SEAT BELT FINISHER STRIP .
- Refer to ATTACHING THE REAR OUTER WINDOW RECESS FINISHER STRIP .
- Refer to INSTALLING THE REAR SEAT .
- Refer to INSTALLING THE INNER DOOR SILL COVER STRIP .
