11 00 050 Removing and installing engine (M57T2)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 0 020

Necessary preliminary tasks:

Disconnect battery negative lead from battery. See 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
Disconnect battery positive cable from jump-start connection point in engine compartment. See 61 21 010 REMOVE AND INSTALL OR REPLACE BATTERY .
Lift engine hood into assembly position. See 51 00... SERVICE POSITION OF ENGINE COMPARTMENT LID .
Remove gearbox. See 24 00 023 REMOVING AND INSTALLING AUTOMATIC TRANSMISSION (GA6HP26Z) , 24 00 033 REMOVING AND INSTALLING AUTOMATIC TRANSMISSION (GA8HP45Z) or 24 00 023 REMOVING AND INSTALLING AUTOMATIC TRANSMISSION (GA8HP70Z) .
Remove radiator design cover. See 17 11 035 REMOVING AND INSTALLING/REPLACING FAN COWL WITH ELECTRIC FAN (M57T2) .
Remove overall engine cover. See 13..... REMOVE THE ACOUSTIC COVERS (M57T2 WITH AND WITHOUT SCR)
Remove air filter housing. See 13 71 000 REMOVING AND INSTALLING/REPLACING THE INTAKE SILENCER HOUSING (M57T2 WITH AND WITHOUT SCR) .
Remove fresh air duct on left/right. See 64 31 053 REMOVING AND INSTALLING OR REPLACING FRESH-AIR DUCT .
Remove center engine compartment partition wall
Remove intake PLENUM .
Release engine wiring harness from electronics box
Release fuel lines, feed and return lines.
Remove fan clutch. See 17 11 035 REMOVING AND INSTALLING/REPLACING FAN COWL WITH ELECTRIC FAN (M57T2) .
Remove A/C compressor drive belt. See 11 28 050 REMOVING AND INSTALLING/REPLACING DRIVE BELT (ELASTOBELT) FOR A/C COMPRESSOR (M57TU/M57T2) .
Remove alternator drive belt. See 11 28 010 REMOVING AND INSTALLING/REPLACING DRIVE BELT FOR ALTERNATOR (M57T2) .
Drain coolant. See 17 00 005 DRAINING AND ADDING COOLANT (M57T2) .
Remove coolant expansion tank. See 17 11 100 REMOVING AND INSTALLING/REPLACING COOLANT EXPANSION TANK (M57T2, N57 D30 O/T/S 0/1) .
Remove radiator. See 17 11 000 REMOVING AND INSTALLING RADIATOR (M57T2)
Remove engine underbody protection at front/middle. See 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT ASSEMBLY UNDERSIDE PROTECTION .
Remove catalytic converter. See 18 40 040 REMOVING AND INSTALLING, SEALING OR REPLACING EXHAUST MANIFOLD (M57T2) .

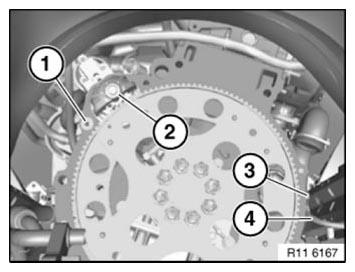

Secure starter motor (1) with transmission screw (2) against falling out.

Release screw (3) and place grounding strap (4) to one side.

Fig 1: Identifying Starter Motor With Transmission Screw

Courtesy of BMW OF NORTH AMERICA, INC.

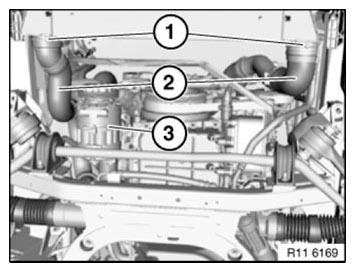

Release lock (1)

Remove turbocharger hoses (2).

Release A/C compressor (3).

Dynamic Drive optional extra:

Secure all connecting leads with cable ties against falling down.

Fig 2: Identifying A/C Compressor And Turbocharger Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

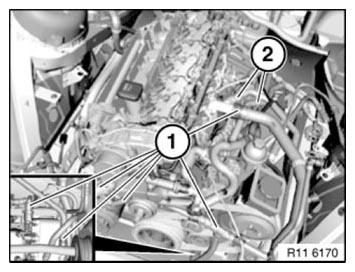

Release and disconnect coolant hoses (1).

Unlock and detach heating hoses (2).

Installation note:

Quick-release couplings of coolant hoses are correctly fitted when they snap into place with a clearly audible click .

Fig 3: Identifying Heating And Coolant Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

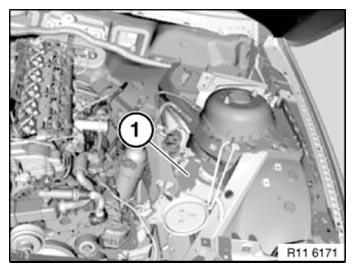

Release power steering pump (1) and place to one side.

NOTE: Secure power steering pump (1) with cable tie against falling down.

Fig 4: Identifying Power Steering Pump

Courtesy of BMW OF NORTH AMERICA, INC.

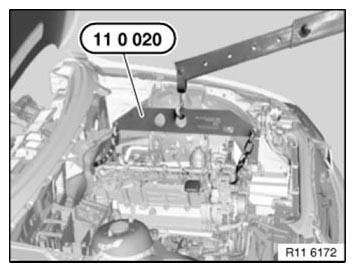

Mount special tool 11 0 020 on engine.

IMPORTANT: Pay attention to chain of special tool 11 0 020 , risk of damage to pressure control valve.

NOTE: Secure engine wiring harness with cable tie on engine against falling down.

Fig 5: Lifting Engine Using Special Tool (11 0 020)

Courtesy of BMW OF NORTH AMERICA, INC.

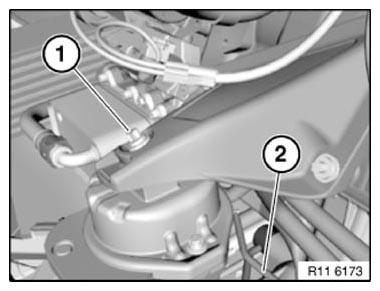

Remove screw (1) on left/right.

Disconnect vacuum line (2).

Fig 6: Identifying Vacuum Line And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out engine with crane.
