11 28 050 Removing and installing/replacing drive belt (elastobelt) for A/C compressor (M57TU/M57T2)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove front splash guard.
If necessary, release bracket on A/C compressor.

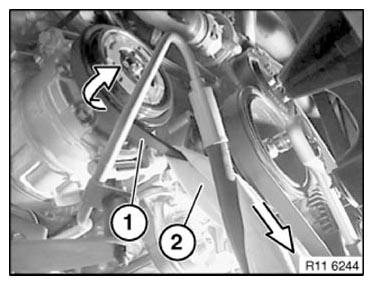

Crank engine in direction of engine rotation.

At the same time, pull off drive belt (2) towards front in direction of arrow using a clean cloth (1).

Remove drive belt (1) towards front.

Fig 1: Removing Drive Belt

Courtesy of BMW OF NORTH AMERICA, INC.

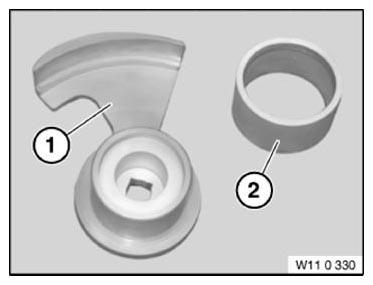

Special tool 11 0 330 is required to fit the elastobelt.

Installation tool 11 0 331
Adapter ring 11 0 332 (use only on M47TU/M47TU2 engine)

Fig 2: Identifying Adapter Ring
Courtesy of BMW OF NORTH AMERICA, INC.

Fit drive belt (1) on A/C compressor.

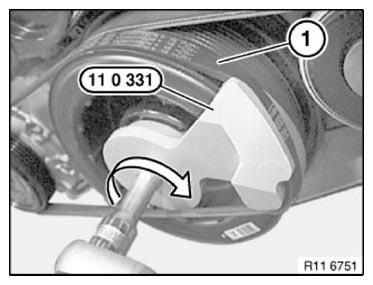

Draw drive belt (1) with special tool 11 0 331 onto belt pulley in direction of arrow.

Fig 3: Turning Drive Belt With Special Tool 11 0 331 Onto Belt Pulley

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check drive belt for coolant and oil residues, replace if necessary.

Observe direction of rotation if reusing the drive belt.
