17 11 000 Removing and installing radiator (M57T2)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of scalding!
Only perform this work after engine has cooled down.

Necessary preliminary tasks:

Follow INSTRUCTIONS FOR WORKING on cooling system
Remove FAN COWL
Drain COOLANT

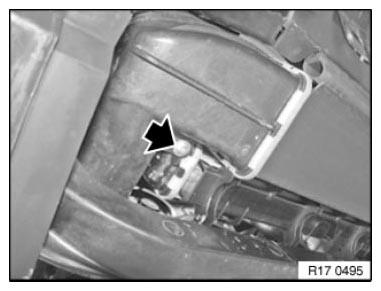

Release screw on intercooler.

Fig 1: Locating Screw On Intercooler

Courtesy of BMW OF NORTH AMERICA, INC.

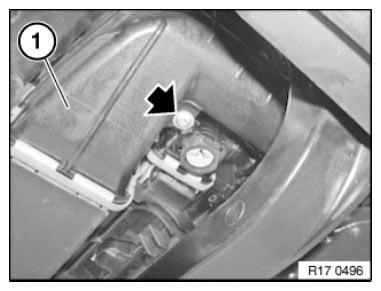

Release screw on intercooler (1).

Fig 2: Locating Screw On Intercooler

Courtesy of BMW OF NORTH AMERICA, INC.

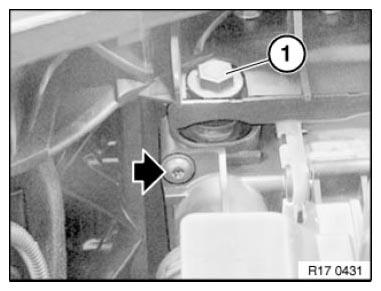

Release screw.

Slacken holder (1).

Tightening torque: 17 11 10AZ .

Fig 3: Locating Screw Of Slacken Holder

Courtesy of BMW OF NORTH AMERICA, INC.

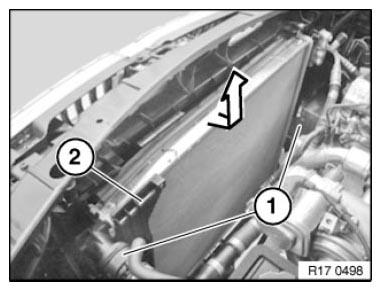

Release and disconnect coolant hoses (1).

Remove radiator (2) in direction of arrow.

NOTE: Picture shows the E83! Under the right coolant hose is another coolant hose which must be released and disconnected before the radiator is removed.

Fig 4: Removing Radiator

Courtesy of BMW OF NORTH AMERICA, INC.
