Install footwell temperature sensor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

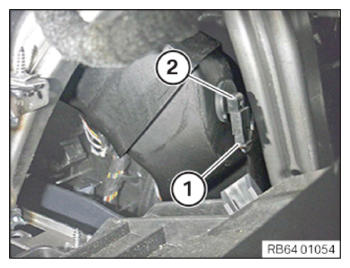

- Correctly position the footwell temperature sensor (2) in the footwell ventilation duct.
- Turn the footwell temperature sensor (2) counterclockwise to the stop.
- Connect plug (1)
.
Follow-up work
- Refer to INSTALLING INSTRUMENT PANEL TRIM .
- Refer to INSTALLING THE LEFT FOLD-DOWN COMPARTMENT .
- Refer to INSTALLING THE INSTRUMENT CLUSTER (KOMBI) .
- Refer to INSTALLING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
- Refer to INSTALLING STEERING COLUMN SHROUD LOWER SECTION .
- Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
- Refer to INSTALLING THE STEERING WHEEL/SPORTS STEERING WHEEL .
- Refer to INSTALLING AIRBAG UNIT OF STEERING WHEEL/SPORTS STEERING WHEEL .
- Refer to INSTALLING SIDE TRIM PANEL IN FOOTWELL ON RIGHT A-PILLAR .
- Refer to INSTALLING THE FRONT RIGHT DOOR SILL COVER STRIP .
- Refer to INSTALLING SIDE TRIM PANEL IN THE FOOTWELL AT A-PILLAR .
- Refer to INSTALLING THE FRONT DOOR SILL COVER STRIP .
- Refer to INSTALLING THE LEFT AND RIGHT A-PILLAR TRIM PANELS .
- Refer to INSTALLING THE LIGHT OPERATING UNIT .
- Refer to INSTALLING THE START-STOP BUTTON .
- Refer to INSTALLING DECORATIVE STRIP FROM INSTRUMENT PANEL .
- Refer to INSTALLING THE HEAD UNIT HIGH (HU-H) .
- Refer to INSTALLING AUDIO OPERATING UNIT AND AIR CONDITIONING CONTROL PANEL .
- Refer to INSTALLING THE FINISHER ON THE RIGHT INSTRUMENT PANEL .
- Refer to INSTALLING RIGHT GLOVE COMPARTMENT .
- Refer to INSTALLING KNEE AIRBAG .
- Refer to INSTALLING THE SIDE PANEL ON INSTRUMENT PANEL ON THE LEFT AND RIGHT .
- Refer to INSTALLING CENTER CONSOLE FULLY WITH CENTER ARMREST .
- Refer to INSTALLING THE FRONT STORAGE COMPARTMENT .
- Refer to INSTALLING THE CENTER CONSOLE TRIM .
- Refer to INSTALLING THE DECORATIVE TRIM TO THE CENTER CONSOLE .
- Refer to INSTALLING THE GEARSHIFT LEVER COVER .
- Refer to INSTALLING SIDE TRIM PANEL FOR THE LEFT AND RIGHT CENTER CONSOLE .
- Refer to INSTALLING THE BOTTOM RIGHT INSTRUMENT PANEL TRIM .
- Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
- Refer to CONNECTING THE BATTERY EARTH LEAD .
