Installing airbag unit of steering wheel/sports steering wheel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

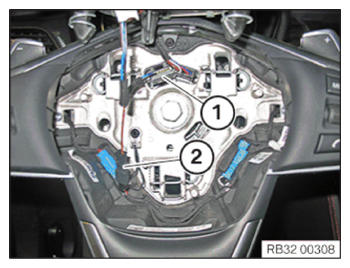

Connect and lock connectors (1) and (2) of the airbag unit.

Courtesy of BMW OF NORTH AMERICA, INC.

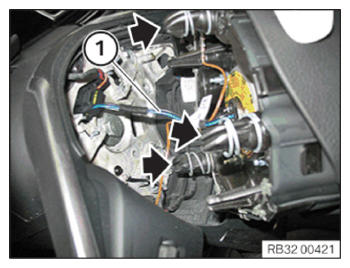

Before installing the airbag unit, align the wiring harness (1) to the center so that the latch mechanisms (arrows) are exposed!

Courtesy of BMW OF NORTH AMERICA, INC.

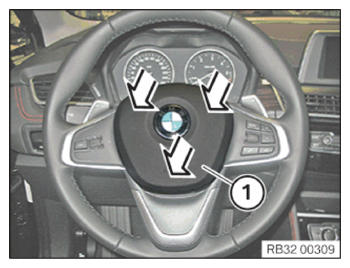

Position airbag unit (1).
Press the airbag unit (1) with even pressure in each case in the direction of the arrow into the steering wheel.

The airbag unit (1) must engage audibly and perceptibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to CONNECTING THE BATTERY EARTH LEAD .
