Install the finisher on the right instrument panel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.
Detents, guides and mounting elements must not be damaged or missing.

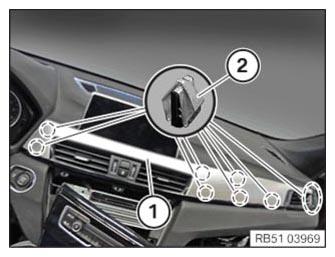

- Install the decorative strip (1).
- Connect connector.
- Engage the decorative strip (1) on the clamps (2).
Follow-up work
- Refer to INSTALLING THE AUDIO OPERATING UNIT TRIM .
