41 35 101 Stripping Operations - Replacing Rear Left Side Panel (Non-Hybrid)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.
The following list basically represents the removal sequence.
- Clamp off battery negative lead (61 20 900 )
- Remove bumper trim (51 12 156 )
- Remove bumper support (51 12 050 )
- Remove center bumper guide (51 12 825 )
- Remove left bumper guide (51 12 828 )
- Remove luggage compartment floor trim panel (51 47 101 )
- Remove tail panel trim at top (51 46 050 )
- Remove left luggage compartment wheel arch panel (51 47 151 )
- Partially detach rear lid seal
- Remove left rear lid (63 21 180 )
- Remove trim panel for left roof pillar (51 43 251 )
- Remove rear lid (41 62 000 )
- Remove left lock striker (51 21 003 )
- Remove rear left door sill cover strip (51 47 030 )
- Remove rear left rocker panel trim (51 47 072 )
- Remove left backrest side section (52 26 008 )
- Remove trim on C-pillar at bottom left
- Remove rear left door edge protection (51 72 010 )
- Remove rear window (51 31 200 )
- Remove rear left wheel arch cover (51 71 041 )
- Remove panel for cover on left side member (51 71 447 )
- Remove rear left door
- Remove trim strip on left roof frame (51 13 280 )
- Partially release wiring harness

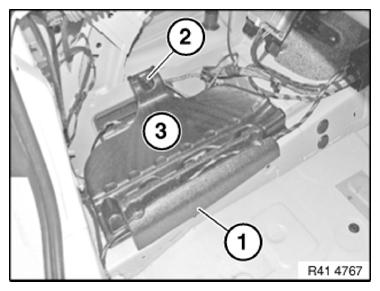

Release wiring harness holder (1).
Release expanding rivet (2) and remove cover (3).

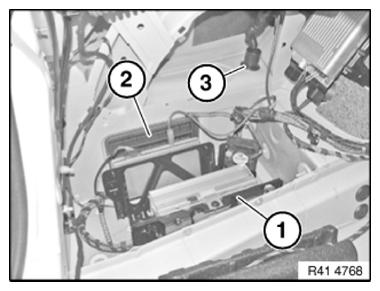

Disconnect plug connections for control units.
Remove holder (1) for control units.
Release latch mechanisms and remove ventilation (2).
Release water drain hose (3) for slide/tilt sunroof.
