51 12 050 Removing and installing/replacing support for rear bumper panel

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR BUMPER TRIM

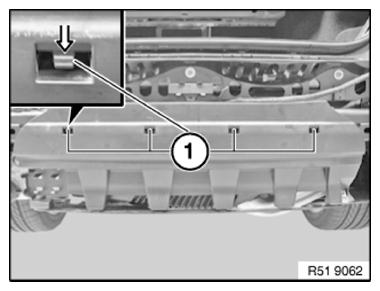

Unclip adapter by pressing on the retaining tab (1) and remove.

Fig 1: Removing Rear Bumper Trim

G09925798

Courtesy of BMW OF NORTH AMERICA, INC.

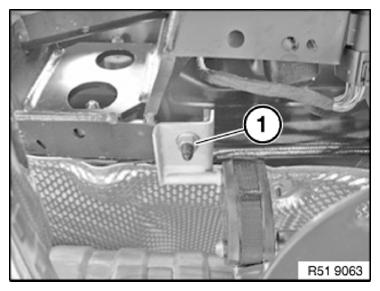

Release nut (1) from exhaust bracket on left or left and right.

Tightening torque 51 12 8AZ .

Fig 2: Identifying Exhaust Bracket Nut

G09925799

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: (illustration with optional equipment trailer tow hitch)

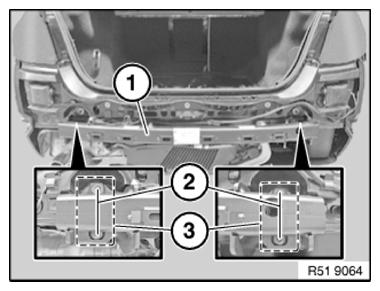

Feed out all lines on the support (1).

Release nuts (2) from carrier (1).

Tightening torque 51 12 1AZ .

Remove carrier (1).

Installation note:

Replace seals (3) on carrier (1).

Fig 3: Identifying Carrier Support

G09925800

Courtesy of BMW OF NORTH AMERICA, INC.
