51 13 280 Removing and installing/replacing trim strip on roof frame at left or right

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 321

WARNING: In order to prevent paint damage on the roof, mask off roof in the work area.

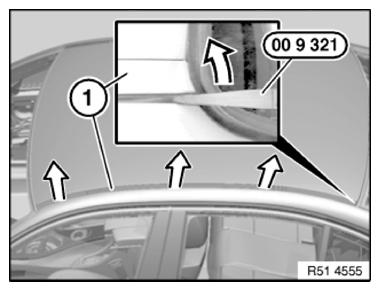

Lever out trim strip (1) with special tool 00 9 321 starting at rear.

Unclip trim strip (1) in direction of arrow.

Fig 1: Removing Trim Strip Using Special Tool (00 9 321)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

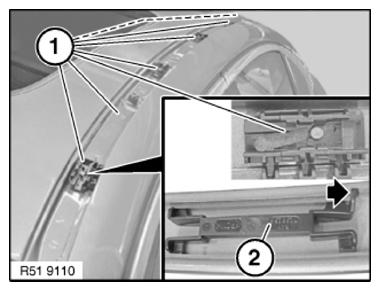

In the roof area, clips (1) and counterpiece (2) in trim strip must not be damaged or missing.

Clips (1) and counterpiece (2) are position coded.

Emergency strategy if T-bolt is broken:

REPAIRING CLIPS FOR ROOF STRIP

Fig 2: Identifying Roof Clips And Counterpiece

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

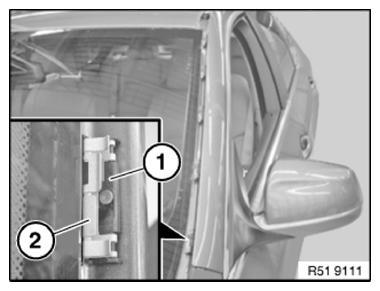

In the windscreen area, clips (1) with retaining clips (2) must not be damaged or missing.

Emergency strategy if T-rivet is broken:

REPAIRING CLIPS FOR ROOF STRIP

Fig 3: Identifying Windscreen Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Graphic originates from F10

Except F11:

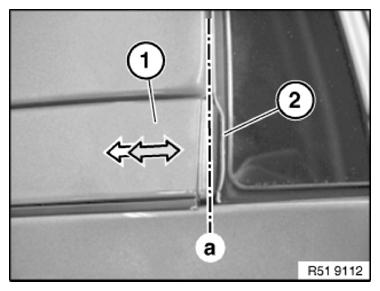

Adjust rear trim strip (1) in such a way that rear windscreen rubber seal (2) rests flush (a) against roof and end of trim strip.

F11 only:

Adjust rear trim strip (1) in such a way that roof and end of trim strip rest flush (a) against each other.

Fig 4: Adjusting Rear Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.
