41 62 000 Removing And Installing Tailgate

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Necessary preliminary tasks:

Remove PANEL FOR TAILGATE .
Disconnect all cable plug connections and pull wiring harness out of tailgate.

Carry over the work step shown symmetrically to the other side of the vehicle.

Release screws (1).

Slacken screw (2) and remove tailgate with a second person.

Tightening torque 41 62 1AZ .

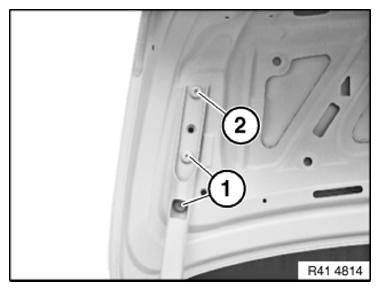

Fig 1: Identifying Trim Panel Of Tailgate, Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Install tailgate at screw locations on hinge.

If necessary, ADJUST TRUNK LID .

If reversing camera optional equipment installed:

Calibrate REVERSING CAMERA .
