51 12 828 Removing and installing/replacing guide for rear left or right bumper

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR BUMPER TRIM

NOTE: The operation is described on the left side; proceed in the same way for the right side.

Unfasten screws (1 and 3).

Replace sheet nuts behind if necessary.

Unscrew nuts (2).

Remove guide (4).

Tightening torque 51 12 3AZ

If necessary, remove TELEPHONE AERIAL .

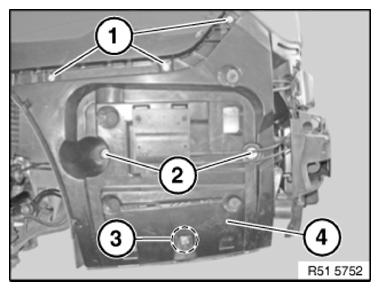

Fig 1: Identifying Bumper Nut, Screw And Guide

Courtesy of BMW OF NORTH AMERICA, INC.
