51 12 825 Removing and installing/replacing guide for rear center bumper

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR BUMPER TRIM
If necessary, remove SENSOR FOR LANE CHANGE WARNING

NOTE: Operation is described on the left side.

The operation on the right side is the same as for the left side.

Release screw (1).

Slacken nut (2).

Tightening torque 51 12 2AZ

Installation note:

Note line routing.

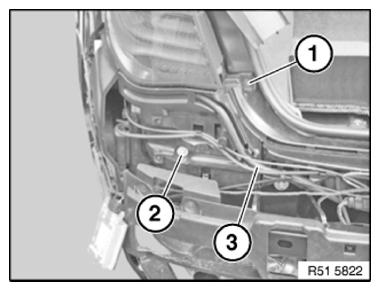

Fig 1: Identifying Bumper Nut And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Tightening torque 51 12 2AZ

If necessary, remove plug connection on bumper aerial for comfort access system.

Feed out guide (2) and remove.

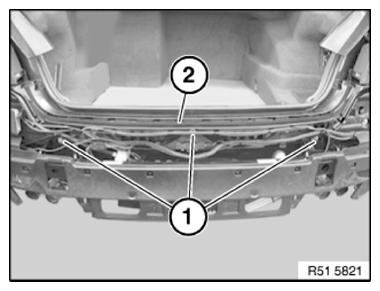

Fig 2: Identifying Bumper Nut And Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove BUMPER AERIAL for comfort access system
