33 31 011 Replacing rear axle support
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Before removing rear axle support:
In order to avoid damage to vehicle hoist, perform weight compensation on vehicle.
Load luggage compartment with sand bags.
In order to avoid damage to vehicle hoist, perform weight compensation on vehicle.
Load luggage compartment with sand bags.
Necessary preliminary work:
- Remove REAR AXLE SUPPORT
- Remove REAR AXLE FINAL DRIVE
Remove ANTI-ROLL BAR
Remove ACTUATOR UNIT (PARKING BRAKE) .
Remove RIDE HEIGHT SENSOR(S) .
Remove INTEGRAL ACTIVE FRONT STEERING
Version with Dynamic Drive: Disconnect PRESSURE LINES for swivel motor of rear axle from rear axle support.
Remove both SWINGING ARMS ON REAR AXLE SUPPORT .
Remove both WISHBONES ON REAR AXLE SUPPORT .
Remove both TOE ARMS ON REAR AXLE SUPPORT .

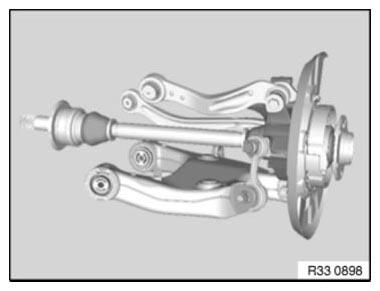

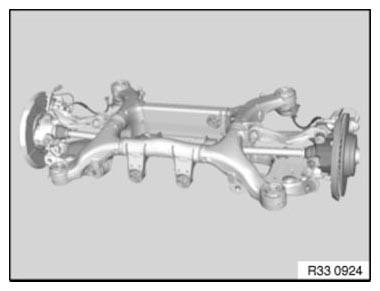

Remove both wheel carriers with output shaft, swinging arm and wishbones.

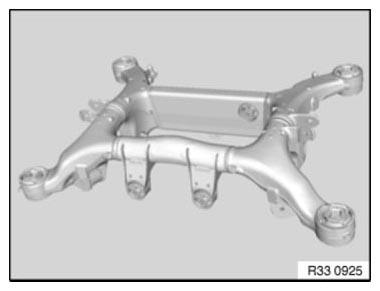

Take rear axle support down from special tool with assistance of a 2nd person and set down on a suitable surface.
Installation note:
Use previous rear axle support as a template for modifying or replacing small parts.
After installation
- Activate and fill AIR SUSPENSION SYSTEM
- Carrying out ride height adjustment
- Adjust PARKING BRAKE (only F07)
- Perform chassis alignment check. See ALIGNMENT CHECK WITH VEHICLE LOAD or ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT (WITHOUT VEHICLE LOAD) .
Version with Dynamic Drive:
- Fill and bleed HYDRAULIC SYSTEM
- Check line connections for tightness
- Dynamic Drive START-UP
