33 32 071 Replacing one upper wishbone

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the wishbone is detached from the rear axle support/wheel carrier, it will be necessary to carry out the wheel alignment procedure after assembly. See ALIGNMENT CHECK WITH VEHICLE LOAD or ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT (WITHOUT VEHICLE LOAD) .

Necessary preliminary tasks:

Remove REAR WHEEL .

Shown on vehicle at rear right:

Remove holders (1) from wishbone.

Installation note:

Replace defective bracket.

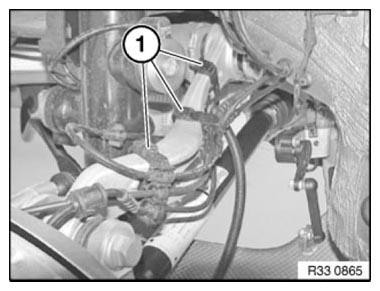

Fig 1: Identifying Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten nut (1) and remove screw (2).

Tightening torque 33 32 9AZ .

Remove wishbone (3) from wheel carrier.

Installation note:

Replace nut (1) and screw (2).

Keep wishbone to wheel carrier connection clean and free from oil and grease.

Tighten down screw connection in NORMAL POSITION .

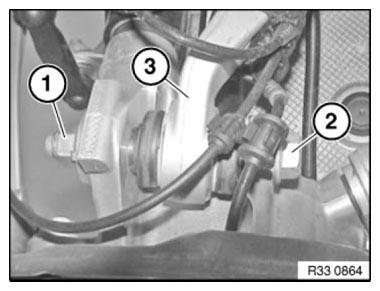

Fig 2: Identifying Wishbone, Nut, And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Mark position of eccentric adjustment washer to rear axle support to simplify subsequent adjustment of rear axle.

Release nuts (1) and remove eccentric washer.

Tightening torque 33 32 8AZ .

Pull out the eccentric bolt (2).

Take off wishbone.

Installation note:

Replace nut (1).

Note direction of insertion of eccentric bolt (2).

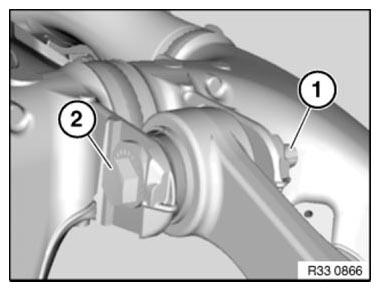

Fig 3: Identifying Nuts And Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Align eccentric washer and install.

Tighten down screw connection in NORMAL POSITION .

After installation

Perform wheel alignment. See ALIGNMENT CHECK WITH VEHICLE LOAD or ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT (WITHOUT VEHICLE LOAD) .
