33 32 180 Removing and installing/replacing left or right toe arm

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the toe arm is detached from the rear axle support, it will be necessary to carry out a wheel alignment procedure after assembly. See ALIGNMENT CHECK WITH VEHICLE LOAD or ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT (WITHOUT VEHICLE LOAD) .

Necessary preliminary work:

Remove REAR WHEEL .

F01, F02:

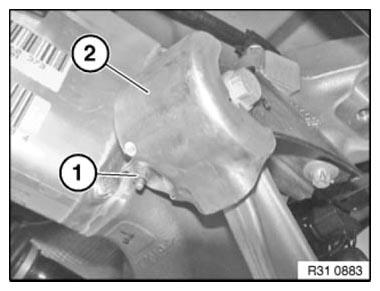

Release nut (1) and remove heat shield (2).

Tightening torque 33 32 10AZ .

Installation note:

Replace self-locking nut.

Fig 1: Identifying Heat Shield And Nut

G06889868

Courtesy of BMW OF NORTH AMERICA, INC.

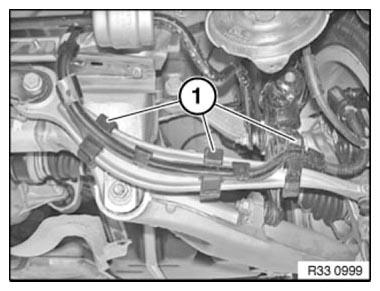

Remove cable holder (1) from toe arm, if applicable.

Installation note:

Replace faulty cable clips.

Fig 2: Identifying Cable Holder

G06889869

Courtesy of BMW OF NORTH AMERICA, INC.

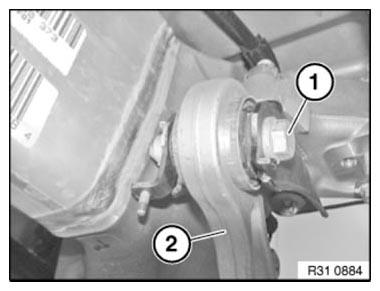

Release bolt (1).

Tightening torque 33 32 6AZ .

Pull out bolt (1) and remove toe link (2).

Installation note:

Tighten down screw connection in NORMAL POSITION .

Fig 3: Identifying Toe Link And Bolt

G06889870

Courtesy of BMW OF NORTH AMERICA, INC.

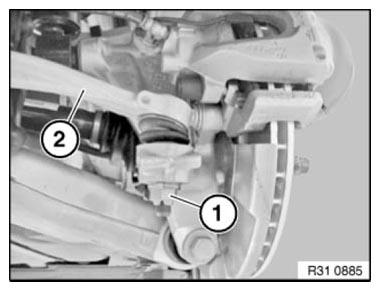

Slacken nut (1).

Tightening torque 33 32 7AZ

Remove toe link (2) from wheel carrier.

Installation note:

Insert toe link (2) first in wheel carrier.

Keep toe link to wheel carrier connection clean and free from oil and grease.

Replace nut.

Fig 4: Identifying Toe Link And Nut

G06889871

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

Carry out wheel alignment procedure. See ALIGNMENT CHECK WITH VEHICLE LOAD or ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT (WITHOUT VEHICLE LOAD) .
