37 13 132 Removing and installing/replacing pressure lines for oscillating motor (HA1/HA2)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
WARNING:
DANGER OF POISONING
if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
Scalding hazard!
This work may only be carried out on an exhaust system which has cooled down.
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Do not draw off hydraulic fluid (risk of contamination).
Close off pipe connections with plugs. 32 1 270
Do not draw off hydraulic fluid (risk of contamination).
Close off pipe connections with plugs. 32 1 270
Recycling
Catch and dispose of hydraulic fluid in a suitable container.
Necessary preliminary tasks

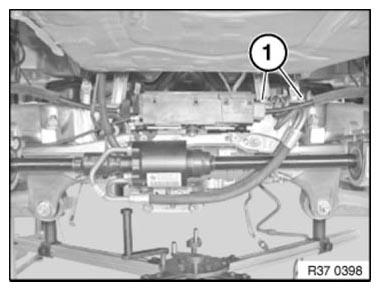

Undo manifold unions (1) and (2).
Tightening torque 37 13 12AZ .
Hydraulic lines must be provided with suitable sealing plugs immediately after removal! 32 1 270
Release screws (1) from holder on rear axle carrier.

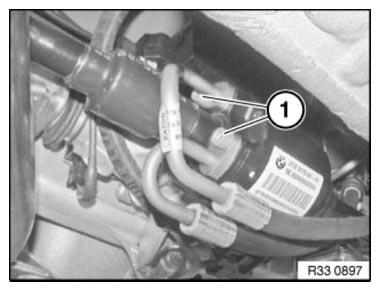

Release screws (1) and remove pressure lines from oscillating motor.
Pressure lines and connections on oscillating motor must be fitted with suitable sealing plugs immediately after removal! 32 1 270
Tightening torque 37 13 4AZ .
IMPORTANT:
When assembling, make sure that in succession only the sealing plugs of the line to be fitted are removed.
When fitting lines, do not tilt connectors (sealing rings!) and connect fully before screwing.
Do not replace sealing rings on hydraulic lines.
Replace affected line if sealing ring is damaged.
When fitting lines, do not tilt connectors (sealing rings!) and connect fully before screwing.
Do not replace sealing rings on hydraulic lines.
Replace affected line if sealing ring is damaged.
After installation
- Fill and bleed HYDRAULIC SYSTEM
- Check line connections for leaks
- Carry out INITIAL DYNAMIC DRIVE OPERATION
