33 34 070 Removing and installing/renewing integral active steering

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Lower REAR AXLE SUPPORT .
REMOVE BOTH TOE LINKS .

IMPORTANT: Screws (1) must not be released during removal!

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect plug connections (1) from steering.

Release screw (2) and remove grounding cable.

Tightening torque 33 34 4AZ .

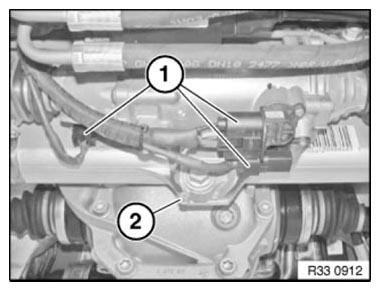

Fig 2: Identifying Grounding Cable And Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 33 34 2AZ .

Undo collar bolts (2).

Tightening torque 33 34 1AZ .

Installation note:

Observe assembly sequence at end of procedure to prevent integral active steering from jamming during installation.

Fig 3: Identifying Collar Bolts And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts (1) and remove Integral Active Steering towards bottom.

Tightening torque 33 34 3AZ .

Installation note:

Observe assembly sequence at end of procedure to prevent integral active steering from jamming during installation.

Fig 4: Identifying Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Observe assembly sequence.

Fasten screws and nuts on the Integral Active Steering at the rear axle support, see Fig 5.

Fig 5: Integral Active Steering Tightening/Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

Perform Integral Active Steering start-up using the diagnosis system (service function/steering test).
Carry out wheel alignment procedure. See ALIGNMENT CHECK WITH VEHICLE LOAD or ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT (WITHOUT VEHICLE LOAD) .
