64 11 206 Removing and installing/replacing heating and air-conditioning unit

Special tools required:

• 00 9 030
• 17 2 050
• 32 1 270

Restart engine only when A/C system has been correctly filled.

Follow NOTES  for opening and replacing parts in refrigerant circuit.

If air conditioning system is opened for more than 24 hours: Replace DESICCANT INSERT FOR AIR CONDITIONING SYSTEM.

Necessary preliminary tasks

• Drain off AIR CONDITIONING SYSTEM .
• Remove SOUND INSULATION FROM BULKHEAD UPPER PART .
• Remove BLOWER HOUSING FOR HEATING AND AIR-CONDITIONING UNIT .
• Remove LEFT SUSPENSION CROSS-BRACE .
• Remove SUPPORT FOR DASHBOARD .
• Disconnect plug connections.
• Unclip wiring harness mountings from heating and air-conditioning unit.

Recycling

Coolant emerges when coolant lines are detached. Have a suitable collecting vessel ready.

Catch and dispose of escaping coolant.

Observe country-specific waste disposal regulations.

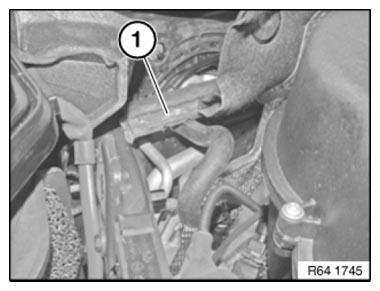

Feed out line feed-through (1) towards top.

Fig 1: Identifying Feed Out Line Penetration

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove refrigerant lines (2) with associated gasket.

Tightening torque 64 53 1AZ .

Installation note:

Replace sealing rings.

Use special tool 00 9 030 to mount sealing rings without damaging them.

Fig 2: Identifying Refrigerant Lines And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Mark connection sequence of water hoses prior to removal.

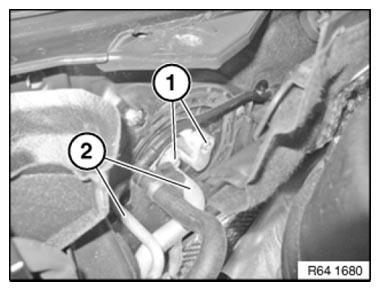

Release hose clamps (1) with special tool 17 2 050 and detach coolant hoses (2).

Fig 3: Identifying Coolant Hoses And Hose Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Close openings or line to heat exchanger with special tool 32 1 270 , to avoid media leak and dirt contamination.

Equipment specification with electric auxiliary heater only:

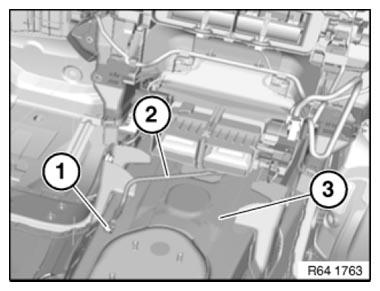

Release screw (1).

Remove grounding cable for electric auxiliary heater (2) from floor trim panel (3).

Fig 4: Identifying Electric Auxiliary Heater Earthing Cable, Floor Trim Panel And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

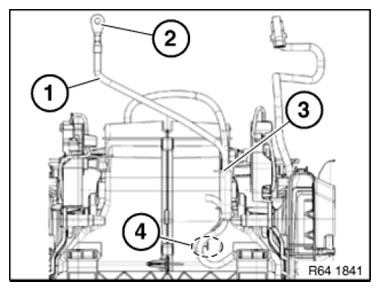

Run excess cable as shown in item (4).

Fig 5: Identifying Earthing Cable, Earthing Cable Points And Cable Item

Courtesy of BMW OF NORTH AMERICA, INC.

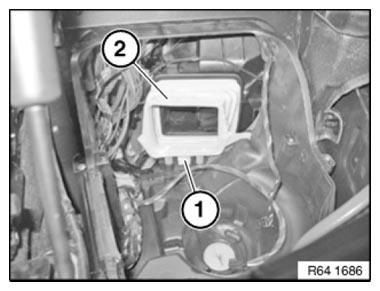

Unlock retaining lug (1) on gaiter (2).

Lever gaiter (2) out of guides.

Installation note:

Make sure retaining lug (1) and adjacent guides are correctly latched.

Fig 6: Identifying Lock Retaining Lug On Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

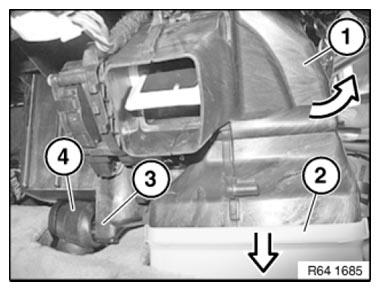

Unclip air ducts (2), left and right towards bottom, from heater/air conditioner (1).

Feed out heating and air-conditioning unit (1) in direction of arrow.

Installation note:

Water drain (3) must be inserted on both sides into outlet channel (4).

Fig 7: Feeding Out Heating And Air-Conditioning Unit In Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

• Modify EVAPORATOR .
• Modify HEAT EXCHANGER .
• Modify EXPANSION VALVE .
• Modify ALL ACTUATOR DRIVES .
• Modifty OZONE GENERATOR  if necessary.
• Modify ELECTRIC AUXILIARY HEATER (FRONT)  if necessary.

After installation

• EVACUATE AND FILL AIR CONDITIONING .
• Bleed and fill cooling system  . See 17 00 039 VENTING AND FILLING COOLING SYSTEM WITH VACUUM FILLING UNIT or 17 00 039 BLEEDING COOLING SYSTEM AND CHECKING FOR WATERTIGHTNESS (N63 B44 O 0)
