64 12 670 Replacing electric auxiliary heater - front-

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove HEATING ELEMENT .

Heater/air conditioner shown in removed state.

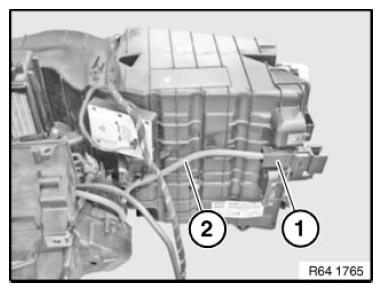

Unclip plug housing (1) from holder.

Feed positive lead (2) out of holders.

Installation:

Make sure positive lead (2) is correctly laid.

Fig 1: Identifying Plug Housing And Positive Lead

Courtesy of BMW OF NORTH AMERICA, INC.

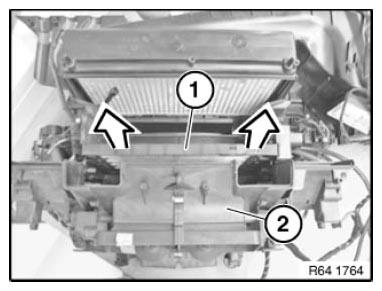

Pull electric auxiliary heater (1) upwards out of heating unit housing (2).

Fig 2: Pulling Electric Auxiliary Heater Of Heating Unit Housing

Courtesy of BMW OF NORTH AMERICA, INC.
