64 11 973 Removing and installing or replacing ozone generator (before 09/2010)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The ozone generator was installed on vehicles built before 09/2010.

Necessary preliminary work

Remove RIGHT GLOVE BOX WITH HOUSING .

Disconnect plug connection (1).

Unlock ozone generator (2) in direction of arrow and remove towards front from filter housing (3).

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

For purposes of clarity, illustration shows heating/air conditioning unit (1) removed.

Retaining lugs (3) on ozone generator (4) must be correctly engaged in guides on filter housing (3).

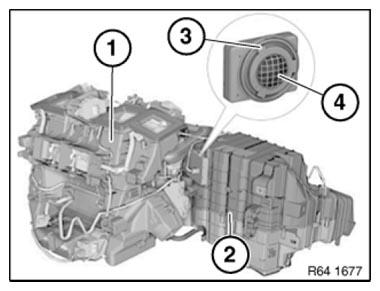

Fig 2: Identifying Retaining Lugs On Ozone Generator And Filter Housing

Courtesy of BMW OF NORTH AMERICA, INC.
