64 11 545 Removing and installing blower housing for heating and air-conditioning unit

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove RIGHT/REAR SUSPENSION CROSS-BRACE .
REMOVE auxiliary electronics box.

Unlock plug connection (1) on AUC sensor (2) and disconnect.

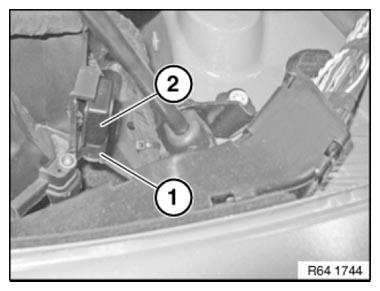

Fig 1: Identifying Lock Plug Connection On AUC Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on blower housing cover (2).

Lift out blower housing cover.

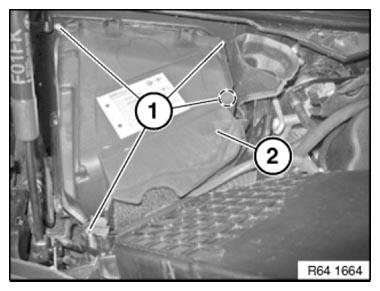

Fig 2: Identifying Fan Housing Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on fan housing (2).

Unlock plug connections (3) and disconnect.

Carefully feed out fan housing (2).

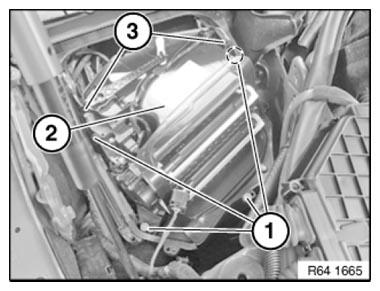

Fig 3: Identifying Fan Housing Screws And Fasten Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
