64 11.. Overview of actuator drives on heater/air conditioner

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

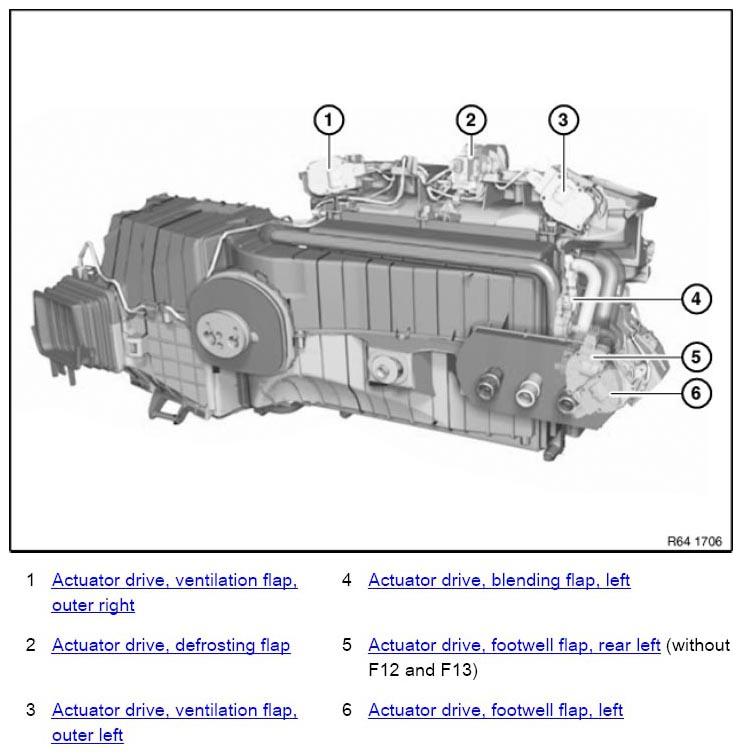

Fig 1: Overview Of Actuator Drives On Heater/Air Conditioner
G08487639Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: The High equipment specification heater/air conditioner is pictured!

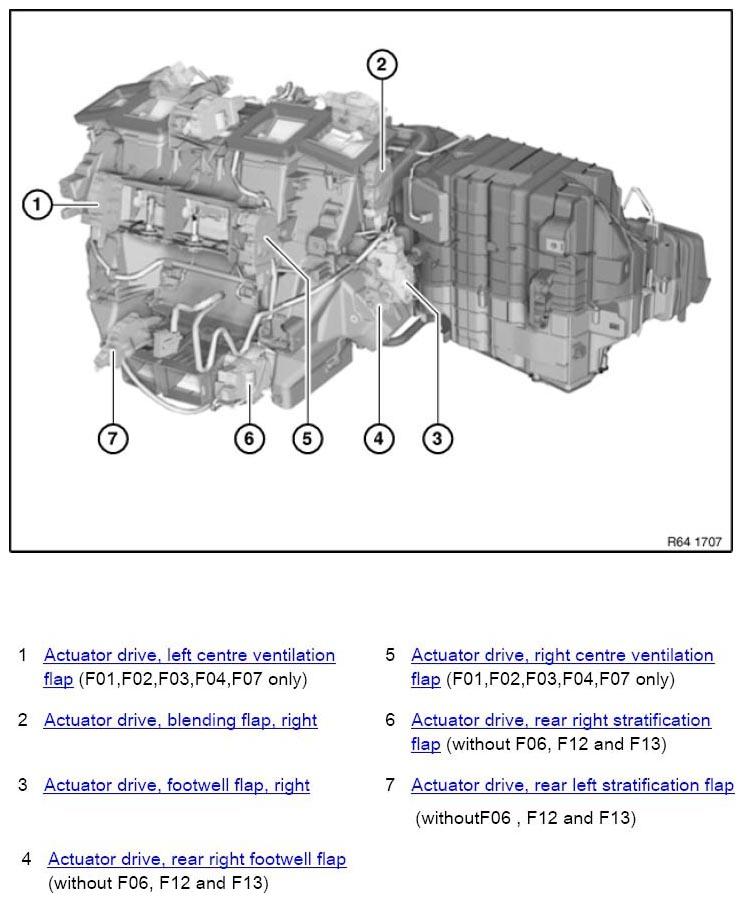

Fig 2: Overview Of Actuator Drives On Heater/Air Conditioner Components
G08487640Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: The High equipment specification heater/air conditioner is pictured!
