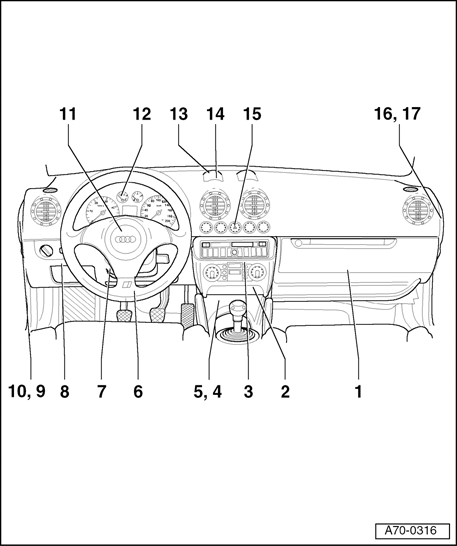

Component locations, overview

1 - Removing glove box → Glove box, removing and installing

2 - Removing front ashtray → Front ashtray, removing and installing

3 - Removing front section of center console → Front section of center console, removing and installing

4 - Removing footwell vent trim → Footwell vent and footwell vent trim, removing and installing

5 - Removing footwell vent → Footwell vent and footwell vent trim, removing and installing

6 - Removing steering wheel → Steering wheel, removing and installing

7 - Removing steering column switch Removing steering column switch

8 - Removing drivers storage compartment → Drivers storage compartment, removing

9 - Removing instrument panel end trim (left) Removing instrument panel end trim (left)

10 - Unscrewing instrument panel end mounting plate (left) Removing instrument panel end mounting plate (left)

11 - Removing airbag unit → Drivers side airbag unit, removing and installing

12 - Removing instrument cluster → 90 INSTRUMENTS

13 - Removing photosensor Removing photo sensor

14 - Removing instrument panel speaker Removing speaker

15 - Removing switch console → Switch console, removing

16 - Removing instrument panel end trim (right) Removing instrument panel end trim (right)

17 - Unscrewing instrument panel end mounting plate (right) Removing instrument panel end mounting plate (right)
