Front section of center console, removing and installing

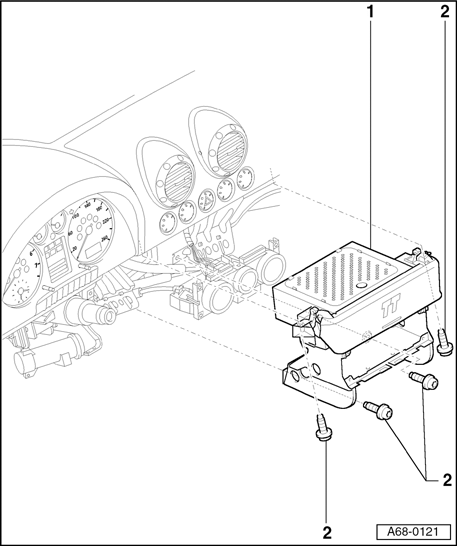

Fig 1: Front Section Of Center Console Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Front section of center console

• Removing

• Remove glove box → Glove box, removing and installing .
• Remove drivers storage compartment → Drivers storage compartment, removing .
• Remove grab handles on center console → Center console grab handles, removing .
• Remove front ashtray → Front ashtray, removing and installing .

• Remove center console trim molding → Center console trim molding, removing and installing .
• Remove AC control panel/heating controls. → 87 AIR CONDITIONING
• Remove screws - 2  - (4x).

2 - Screws (4x)

• Tightening torque 3.5 Nm
