Front ashtray, removing and installing

Open front ashtray.

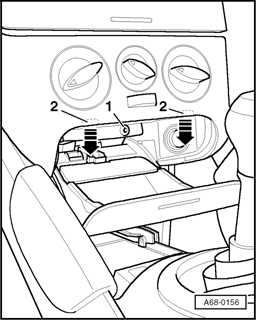

Fig 1: Removing Screws And Pulling Ashtray Downward At Tabs

GW00016643

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove screws - 1 - (2x), tightening torque 2 Nm.
Pull ashtray downward in direction of - arrow - at tabs - 2 -.

Fig 2: Connectors, Guide Rubber Stud And Mounts

GW00016644

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Disconnect connectors - 1 - and - 2 -.
When installing, guide rubber stud - 3 - (2x) into mounts - 4 - (2x).
