Removing speaker

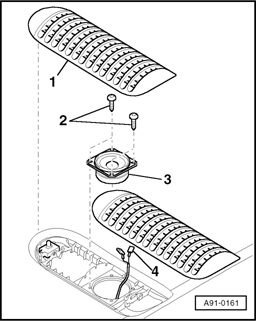

Fig 1: Removing Speaker

GW00016716

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove screws - 2 - (4x), tightening torque 0.8 Nm.
Remove speaker - 3 - and disconnect harness connector - 4 -.
